Thermoplastic Heating Tables

In stock
SKU
25-56
Pricing Varies -See Below
Quick Overview

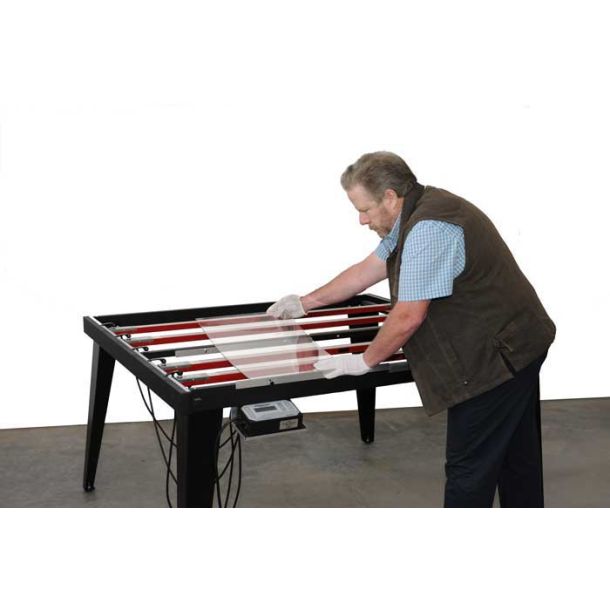

Thermoplastic Heating Tables



The 56000 models are re-designed from the ground up and include some great new features. These new features include the all NEW QTC44 controller, a Unistrut Rail System with 56″ x 48″ working area, quick release Cam Clamp Tray Locks, Material Support with Stops, Integrated Frame Stops and a NEW Leg Kit. With faster set-up and more adjustability, the 56000 models will REDUCE FABRICATION TIMES.




56000 MODELS INCLUDE:
  • 4 Heating Trays
  • QTC Controller with Mounting Tray
  • Powder Coated Aluminum Frame
  • 16 Gauge Powder Coated Steel Legs
  • Material Support Bar
  • 4 Stop Plates

Insulation:

  • 120 Volt AC / 60HZ
  • 800° Operating Temperature
  • 62" Wide x 54" Deep x 5" High
  • 48" Wide x 48" Deep Working Area
  • 68 lbs. Approximate Assembled Weight

Heating Trays (4)

  • Micro Processor Controlled
  • Built in 3 Function Timer
  • Ultra High-Temperature Insulation
  • Sealed & PTFE coated working area
  • Heating Trays have a 1 3/4" center to center measurement when put side by side.
  • Powder coated finish.
Download manual
 56000 Manual



ELECTRICAL INFORMATION
  Controller  Micro Processor
  Maximum Load  1800 watts / 15 Amp
  Input Voltage / Hz  120v AC / 60 Hz
  Current Control Range  0 to 100%
  Fuse  BK/MDA-15-R

DIMENSION & WEIGHT
  Overall  62" wide x 58" deep x 34" high
  Working Area  48" wide x 56" deep
  Assembled Weight  86 lbs.

TRAY HEATED AREA
  56250  1/4" - 48"
  56375  3/8" - 48"
  56500 1/2" - 48"

MATERIAL THICKNESS GUIDE:
  56250  .040" - .080" (1mm - 2mm)
  56375  .080" - .156" (2mm - 4mm)
  56500 .125" - .500" (3mm - 12mm)
