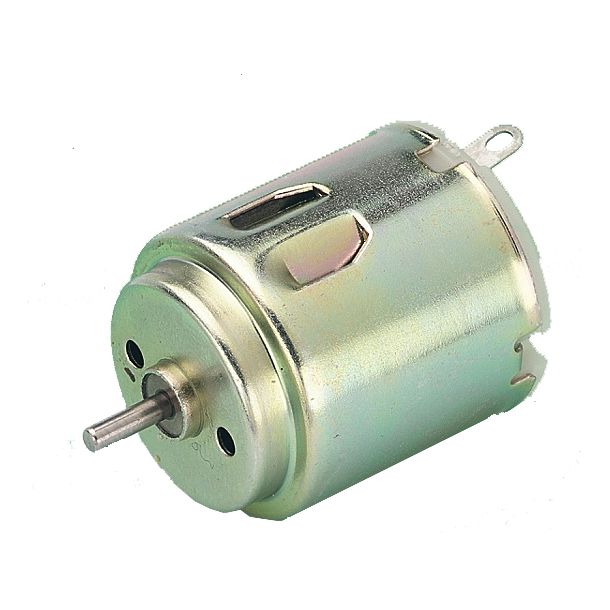

Motor - 1.5V - 7V
Cat# 80-3550-00.
Uses 2 or 4 batteries for greater torque. 2mm spindle. 6/pkg. 9V battery will work.
Uses 2 or 4 batteries for greater torque. 2mm spindle. 6/pkg. 9V battery will work.
Medium torque DC motor with operating range 1.5 to 4.5V, ideal for educational and modelling applications. Rotation is clockwise as viewed from shaft end.
Dimensions: L: 27 (exc. shaft) x 24mm dia. Shaft length 8.6x 2.0 dia. Weight 28g approx.
RoHS compliant
Nominal voltage: 3.0V
Operating range: 1.5-4.5V
No load speed: 6600 RPM ±10%
No load current: 0.13A
Speed at max. efficiency: 5100 RPM
Current at max. efficiency: 0.4A
Output: 0.42W
Torque: 11.6g-cm
Stall torque: 55g-cm min.
Stall current: 1.4A max.
